Architecture Overview

Querator enables API users to interact with queues created by the user, where each queue can consist of one or more partitions. Each partition is backed by a single table, collection, or bucket provided by the chosen backend storage.

Partitions are a fundamental component of Querator, enabling the system to scale horizontally and handle high volumes of data efficiently.

Core Architectural Components​

Partitions: The Foundation of Scalability​

Partitions provide the following benefits:

Scalability​

Partitions allow a single queue to be distributed across multiple Querator instances in a cluster. This distribution prevents any single instance from being overwhelmed by data volume, enabling the system to manage larger data volumes than a single server could handle. By dividing a queue into multiple partitions, Querator can scale beyond the limits of a single machine, making it suitable for large-scale distributed systems.

Parallel Distribution​

Partitions serve as units of parallelism, allowing multiple consumer instances to process different partitions concurrently. This significantly increases overall processing throughput. Unlike some legacy streaming and queuing platforms, clients are not assigned specific partitions. Instead, clients interact with Querator endpoints, which automatically distribute producers and consumers requests across partitions as needed. This automation eliminates the need for operators to manage the number of consumers per partition to achieve even work distribution.

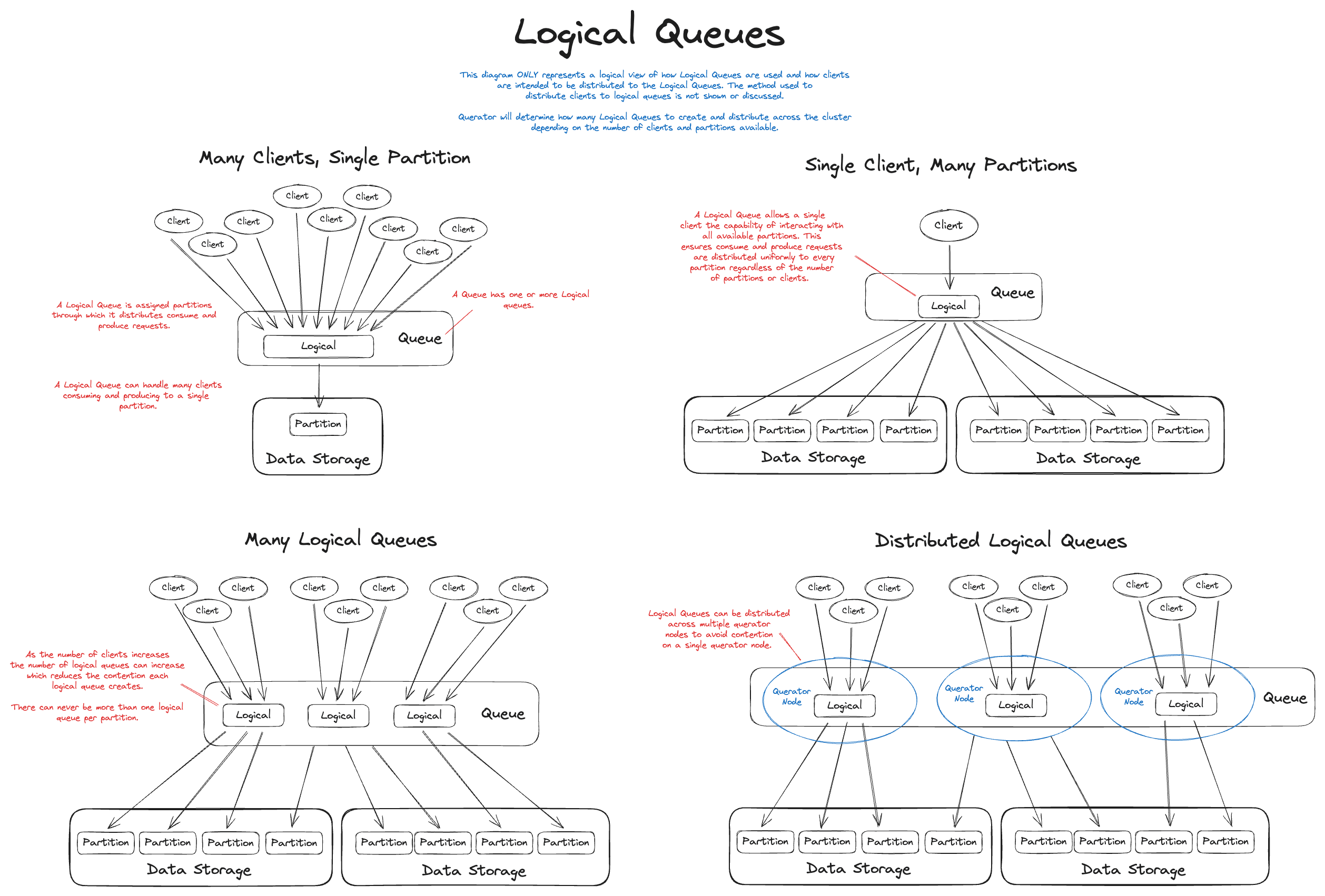

For example, if there are 100 partitions and only one consumer, the single consumer will receive items from all 100 partitions in a round-robin fashion as they become available. As the number of consumers increases, Querator automatically adjusts and rebalances the consumers to partitions to ensure even distribution, even if the number of consumers exceeds the total number of partitions. This is achieved through "Logical Queues," which dynamically grow and shrink based on the number of consumers and available partitions.

Distributed Logical Queues​

Logical Queues are made up of many partitions, those partitions are organized into logical queues depending on the number of consumers registered. This system uses Raft leader election to choose a coordinator. The coordinator will rebalance and assign logical queues for each queue group. Coordinators are distributed amongst all the Querator instances by the leader.

NOTE: Distributed functionality is planned, but not yet implemented

Dynamic Scaling Operations​

The Logical Queue and Partition design allows queues dynamically to sale up and down as needed.

It also allows zero downtime maintenance of the underlying store system. As Querator is designed to drain partitions off storage systems that are marked as "readonly" until they can safely be shutdown or updated. This allows users to increase queue throughput without sacrificing availability.

It also means that storage or network failures to underlying store does not constitute downtime for Querator, as it can safely ignore the degraded storage system until it recovers.

Disaggregated Storage Backends​

Each partition is supported by a user-selected database backend. This separation of storage from processing gives operators the flexibility to choose the desired level of fault tolerance for their specific deployment, and allows them to use a database they are already familiar with in terms of operation and scaling. Each partition is backed by a single table, collection, or bucket (depending on the backend database), making it easy to add or remove partitions as throughput requirements change or as items are drained from the partition backends.

Unlike similar queue systems, Querator manages the complexity of partitioning and balancing on the server side, simplifying the client API. This design choice makes it easy to integrate Querator with third-party systems, frameworks, and languages, fostering a rich open-source ecosystem.

The only requirement for databases is support for ordered primary keys. With just this requirement, Querator can work with any database that implements the storage backend interface. Support for transactions and secondary indexes is not required, but can be used to improve Querator's reliability and performance.
